Name: espessura 12.8W/M.K Electrical Insulation Pad de 1.5mm
Brand: Shenzhen Linmao Electronic Material Co.,Ltd.
SKU: LM-NG280
Availability: InStock

Informação detalhada

Material:	acrylate	tensão avaliado:	5 KV/mm
Condutibilidade térmica:	12.8W/m.k	Espessura:	1.5mm
Cor:	Verde	Aplicação:	5G, veículos elétricos, dissipador de calor, processador central, iluminação do diodo emissor de luz
Resistência à tração:	0.8KN/m	Tamanho:	200mm*400mm/personalizou
Destacar:	almofada elétrica da isolação 12.8W/m.k , almofada térmica livre do silicone 12.8W/m.k , almofada elétrica da isolação da espessura de 1.5mm

Descrição de produto

Thermal Conductive Silicone-Free Gap Filler Pad For CPU Without Silicone Oil

Product Description

LM-NG280 Silicone-free thermal pad, no siloxane metal oxide filler, no silicone oil, no pollution, no oil leakage during long-termhigh-temperature use, especially suitable for heat dissipation of components sensitive to silicone oil. Silicon-free thermal conductive pads have good self-adhesiveness, good insulation, excellent aging resistance, and high flexibility, so they are widely used in optical precision equipment, security, high-end industrial control and medical electronics, automotive engine control equipment, and high-definition cameras And other high-end electronic and electrical industries.

Features & Benefits:

* No siloxane, no volatilization, no pollution * Soft and low hardness material, good for filling * High thermal conductive, low contact heat resistance * Electric insulator

Typical Applications:

* You are worried about products contaminated with silicone oil * Optical precision equipment * Laptops, projectors and office electronics * Mobile and communication devices, high-speed and high-capacity storage drivers * Storage drivers, heat pipe components, automobile engine control equipment * Telecommunications hardware and equipment * High-end industrial control and medical electronics and other fields

Parameters of Thermal pad

Test Item	Unit	NG280-T05	NG280-T10/15	NG280-T20	Test method
Thickness	mm	0.5	1.0&1.5	2	ASTM D374
Material	-	acrylate	acrylate	acrylate	——
Siloxane Volatilization	%	0	0	0	GC-FID
Color	-	green	green	green	Visual
Hardness	shoreC	35±5	35±5	35±5	ASTM D2240
Density	g/cm3	2.5	2.4	2.3	ASTM D792
Tear Strength	KN/m	0.8	0.8	0.8	ASTM D412
Elongation	%	110	110	110	ASTM D374
Continuous use Temp	℃	-40〜+220	-40〜+220	-40〜+220	EN344
Breakdown Voltage	Kv	≥6	≧7	≧8	ASTM D149
Volume Resistivity	Ω·cm	1.5×1016	1.5×1016	1.5×1016	ASTM D257
Dielectric Constant	@1MHz	4	4.5	4.5	ASTM D150
Weight Loss	%	＜0.5	＜0.5	＜0.5	@200℃240H
Flame Rating		V—0	V—0	V—0	UL 94
Thermal Conductivity	W/m.k	12.8	12.8	12.8	ASTM D5470

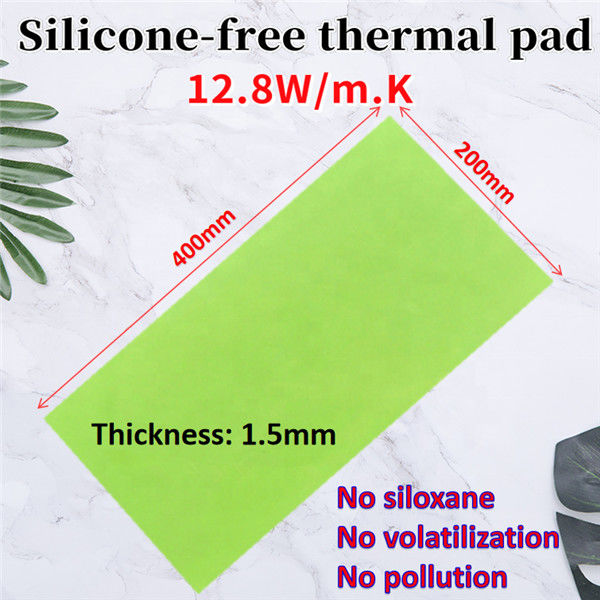

Standard size:200mm×400mm Customized size available Thermal silicon pad can be coated with adhesive, insulating cloth

Product Details

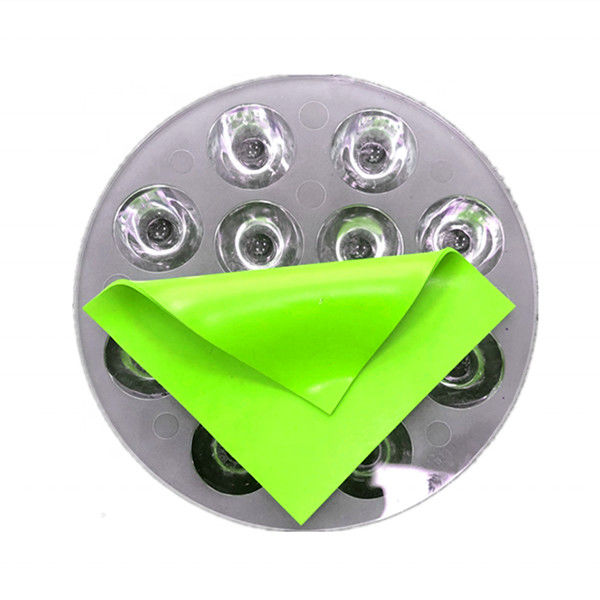

espessura 12.8W/M.K Electrical Insulation Pad de 1.5mm 0

Packing & Shipping

FAQ

Q1: What thermal conductivity test method was used to achieve the values given on the data sheets?
A1: A test fixture is utilized that meets the specifications outlined
in DRL-III.

Q2: Is GAP PAD offered with an adhesive?
A2: Currently, All GAP PAD Materials have inherent tack.

Q3: Is the adhesive reuse?
A3: Depending on the surface being applied to, if care is taken, the pad may be reuse. Special care should be taken.When removing
the pad from aluminum or anodized surfaces to avoid tearing or delamination.

Q4: What is meant by “natural tack”?
A4: The characteristic of the rubber itself has a natural inherent tack, with the addition of an adhesive. As with adhesive backed
products, the surfaces with natural tack may help in the assembly process to temporarily hold the pad in place while the
application is being assembled. Unlike adhesive backed products, inherent tack does not have a thermal penalty since the rubber
itself has the tack. Tack strength varies from one GAP PAD product to the next.

Q5: Can GAP PAD with natural tack be repositioned?
A5: Depending on the material that the pad is applied to, in most cases they are repositionable. Care should be taken when
removing the pad from aluminum or anodized surfaces to avoid tearing or delaminating the pad. The side with the natural tack is
always easier to reposition than an adhesive side.

Q6: Is GAP PAD reworkable?
A6: Depending on the application and the pad being used, GAP PAD has been reworked in the past. Some of our customers are
currently using the same pad for reassembling their applications after burn-in processes and after fieldwork repairs. However,this
is left up to the design engineer’s judgment as to whether or not the GAP PAD will withstand reuse.

Q7: Will heat make the material softer?
A7: From -40°C to 200°C, there is no significant variance in hardness for silicone GAP PAD Materials and Gap Fillers.

Q8: What is the shelf life of GAP PAD?
A8: Shelf life for most GAP PAD Materials is ten (10) year after the date of manufacture. For GAP PAD with adhesive, the shelf
life is two (2) years from the date of manufacture. After these dates, inherent tack and adhesive properties should be
recharacterized. The GAP PAD material’s long-term stability is not the limiter on the shelf life; it is related to the adhesion or
“age up” of the GAP PAD to the liner. Or in the case of a GAP PAD with adhesive, the shelf life is determined by how the adhesive
ages up to the removable liner.
Q9: How is extraction testing performed?
A9: The test method used is the Soxhlet Extraction Method;

Q10: What is the thickness tolerance of your pads?
A10: The thickness tolerance is ±0.2mm on materials .

Q11: What are the upper processing temperature limits for GAP PAD and for how long can GAP PAD be exposed to them?
A11: GAP PAD in general can be exposed to temporary processing temperatures of 120°C.Time base on GAP PAD thickness, assembly line
14 meters long,time about 10-15 minutes .

Q12: Is GAP PAD electrically isolating?
A12: Yes, all GAP PAD materials are electrically isolating. However, keep in mind that GAP PAD is designed to fill gaps and it is
not recommended for applications where high mounting pressure is exerted on the GAP PAD.

Q13: Why are “wet out,” “compliance” or “conformability” characteristics of GAP PAD important?
A13: The better a GAP PAD lays smooth “wets out” or conforms to a rough or stepped surface, giving less interfacial resistance
caused by air voids and air gaps. GAP PAD Materials are conformable or compliant as they adhere very well to the surface. The GAP
PAD Materials can act similarly to a “suction cup” on the surface.
This leads to a lower overall thermal resistance of the pad between the two interfaces.

Q14: Is anything given off by the material (e.g., extractables, outgassing)?
A14: Silicone GAP PAD and Gap Fillers, like all soft silicone materials, can extract low molecular weight silicone .Also note that
GAP PAD and Gap Filler have some of the lowest extraction values for silicone-based gap filling products on the market and if
yourapplication requires minimal silicone, see our line of silicone-free material. The White Paper on GAP PAD S-Class and
information about our silicone-free materials are available on our website.

Q15: Why does the Technical Data Sheet describe the Shore hardness rating as a bulk rubber hardness?
A15: A reinforcement carrier is generally used in BERGQUIST GAP PAD Materials for ease of handling. When testing hardness, the
reinforcement carrier can alter the test results and incorrectly depict thinner materials as being harder. To eliminate this
error, a 250 mil rubber puck is molded with no reinforcement carrier. The puck is then tested for hardness. The Shore hardness is
recorded after a 30-second delay.

etiqueta:

Lugar de origem:	CHINA
Certificação:	ROHS,REACH,UL
Número do modelo:	LM-NG280

Quantidade de ordem mínima:	Negociação
Preço:	negotiable
Detalhes da embalagem:	Embalado na caixa
Tempo de entrega:	3~7 dias
Termos de pagamento:	T/T
Habilidade da fonte:	1000000pcs/day
