| Lugar de origem: | Guangdong, China |
|---|---|
| Certificação: | ROHS,SGS |
| Número do modelo: | MG-GT |
| Quantidade de ordem mínima: | Negociação |
| Preço: | negotiable |
| Detalhes da embalagem: | Embalado na caixa |
| Tempo de entrega: | 3~8 dias |
| Termos de pagamento: | T/T |
| Habilidade da fonte: | 100000pcs/day |
| Espessura: | 0.012mm~0.04mm | Material: | Grafite sintética |
|---|---|---|---|
| Cor: | PRETO | Dureza: | 85shoreA |
| Condutibilidade térmica: | 1700w/mk | Tamanho: | Pode ser personalizado |
| Resistência à tração: | Bom | Uso: | Iluminação conduzida |
| Destacar: | 1700W/M.K thermal conductive pad,30MPa thermal conductive pad,1700W/M.K pyrolytic graphite plate |
||
1700W/MK Thermal Pyrolytic Graphite Pad Graphite Sheet For LED Lighting
Physics parameter form
|
Test item |
Test method |
Value |
Standard |
|
Thickness |
ASTM D374 |
0.035-0.05MM |
Mn |
|
Specific gravity |
ASTM D792 |
1.9 |
g/cm³ |
|
Temperature range |
EN344 |
-40-150 |
℃ |
|
Tensile strength |
ASTM F-152 |
30 |
Mpa |
|
Hardness |
ASTM D2240 |
80 |
Shore A |
|
Antiflaming grade |
UL 94 |
V-0 |
--- |
|
Broken Voltage |
ASTM D149 |
1200 |
Kv/mm |
|
Horizontal thermal conductivity |
ASTM D5470 |
1500 |
w/m-k |
|
Vertical thermal conductivity |
ASTM D5470 |
20 |
w/m-k |
Product adavantage
A.High efficiency of heat transfer: the thermal conductivity is 1000-1900W/m.k.
B.Easy processing: flexible diaphragm, easy cutting and processing into any shape, can be repeated bending.
C.Light weight: density is 1.5-2.1g/cm³(about 1/3-3/4 of the aluminum and equivalent to 1/5-1/4 of the copper).
D.Low resistance: can be used for electromagnetic shielding.
Product application
LED baseplate, fluorescent lamp, panel light, ceiling light, wall light
The connection and thermal conductivity of light metal frame
Let the radiator fixate to the circuit board
Between car control circuit and thermal slug
Between cooling accessories and LED bar accessories
In place of hot melt glue, screw

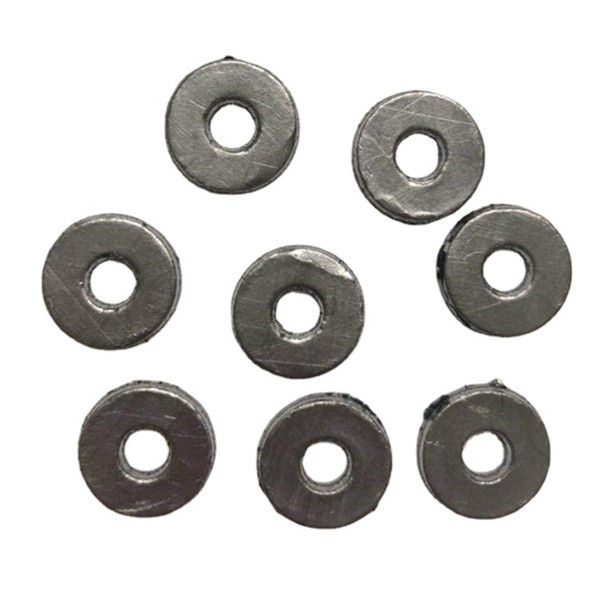

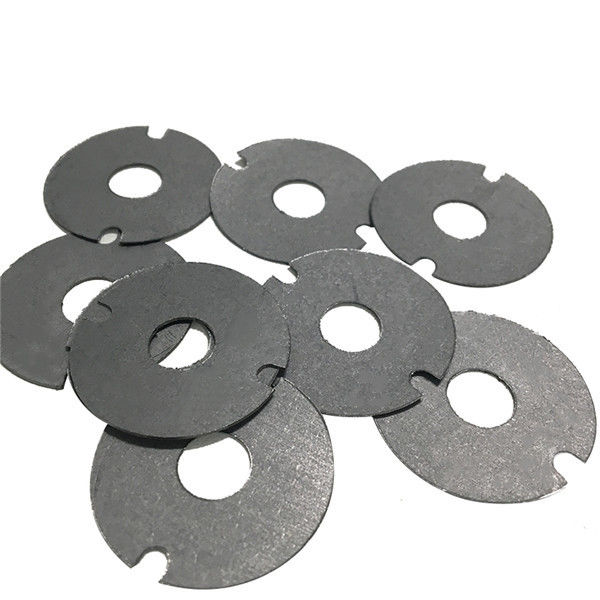

Product Pictures
Packing & Shipping
FAQ
Q: What is the size of the product you can supply?
A: Thickness: 0.06mm/ 0.075mm/0.11mm
Jumbo roll size: 500mm X 500m
Log roll size: 500mm X 33m
Slit roll size: We can make the width down to 1mm Custom size is welcomed
Q: May I get samples?
A: Yes, of course.
A4 sheet or width less 10mm roll sample is free, the customer only pays the freight cost.
Q: How about the price?
A : Polyimide tape manufacturer direct sale price
Also, supply this item in various grades to meet customer demands.
Q: What is your MOQ?
A: 100 Square meter or you tell us the size you need, then we calculate the MOQ for you.
Q: What should we pay attention to when used it?
A: Just let know application, then we shall offer solutions.
